Nanophotonics: Integrating nanocavities into optical fibers with femtosecond laser ablation

Controlling and manipulating the interaction of light with nanostructures offers the promise of new and innovative technological applications ranging from nanolasers and sensors to quantum computing. However, in spite of tremendous advances in nanotechnology that has enabled the fabrication of one and two dimensional structures (such as photonic crystal cavities), efficiently integrating nanocrystal cavities with modern optical fibers in communications networks is proving to be difficult.

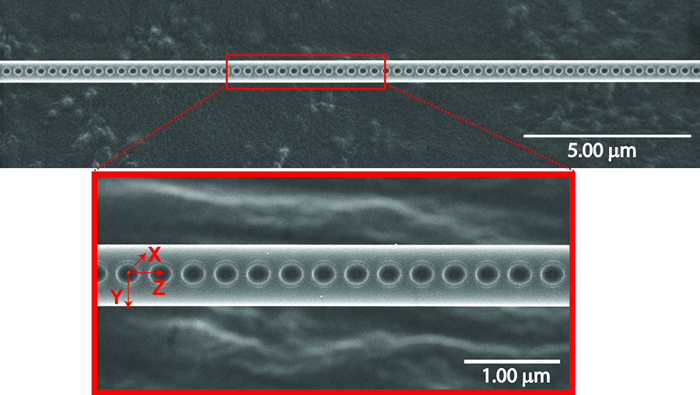

Here, Kohzo Hakuta and colleagues at the University of Electro-Communications, Tokyo, report on the realization of one dimensional arrays of nanometer sized holes or 'nano-craters' on the surfaces of optical nanofibers by simply irradiating them with a single pulse of ultrashort light from a femtosecond laser. These so called 'nanofiber based photonic crystal cavities' are expected to find new applications in nanophotonics and quantum information science.

Specifically, the researchers used a laser with a 400 nm wavelength and 120 fs pulse width to ablate thousands of 50 - 250 nm-diameter nanocraters with a periodicity of 350 nm over a 1 mm length in 450 - 550 nm-diameter nanofibers. Notably, in this procedure the nanofiber acts as a lens and focuses the incident laser light onto its 'shadow side', and the use of only one pulse eliminates structural imperfections due to mechanical vibrations.

The resulting one dimensional photonic cavities exhibited strong broadband reflectance and high optical transmission. The researchers state: "The strong confinement of the field, both transverse and longitudinal, in the nanofiber-based PhC cavities and the efficient integration to the fiber networks, may open new possibilities for nanophotonic applications and quantum information science."

Reference

Kali Prasanna Nayak , Jameesh Keloth and Kohzo Hakuta. "Fabrication of 1-D Photonic Crystal Cavity on a Nanofiber Using Femtosecond Laser-induced Ablation." Journal of Visualized Experiments, published online (25th February 2017)

doi:10.3791/55136

Video of the experiment: http://www.cpi.uec.ac.jp/researchActivities.html

Professor:

Kohzo, Hakuta (Ph.D. from The University of Tokyo 1974)

Current research areas:

Atomic/Molecular/Optical physics, Quantum Electronics, Quantum Optics, Nanophotonics

Current research subjects:

Optical Nanofibers for Quantum Photonics

Personal website:

http://www.cpi.uec.ac.jp/index.html

Associate Professor:

Kali Prasanna, Nayak (Ph.D. from The University of Electro-Communications 2009)

Current research areas:

Quantum Optics, Nanophotonics

Current research subjects:

Interfacing single atoms/photons on optical nanofiber cavity

Present Doctor Course Student:

Jameesh, Keloth (Master of Science from University of Hyderabad 2011)

Current research subjects:

Developing optical nanofiber cavity for quantum photonics
